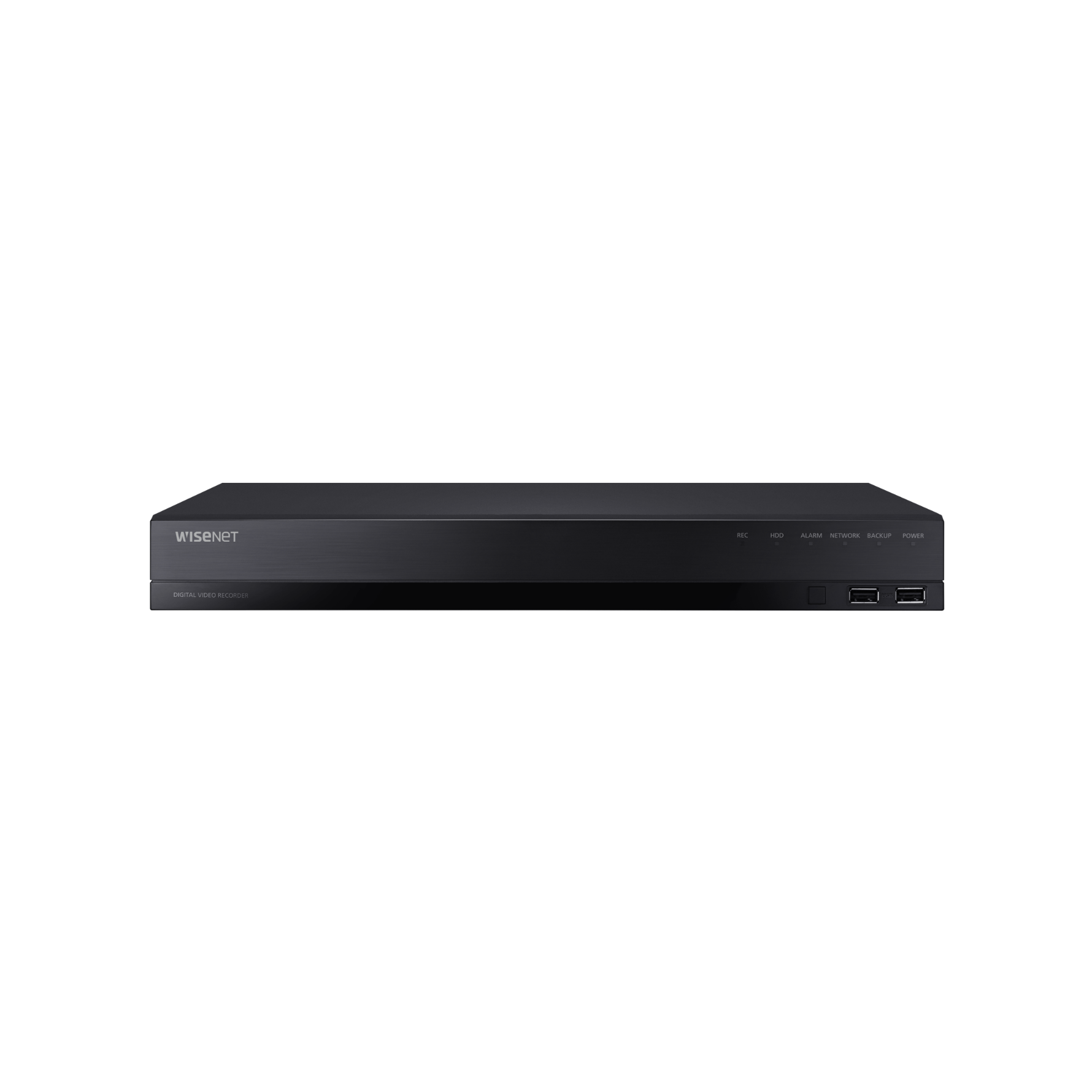

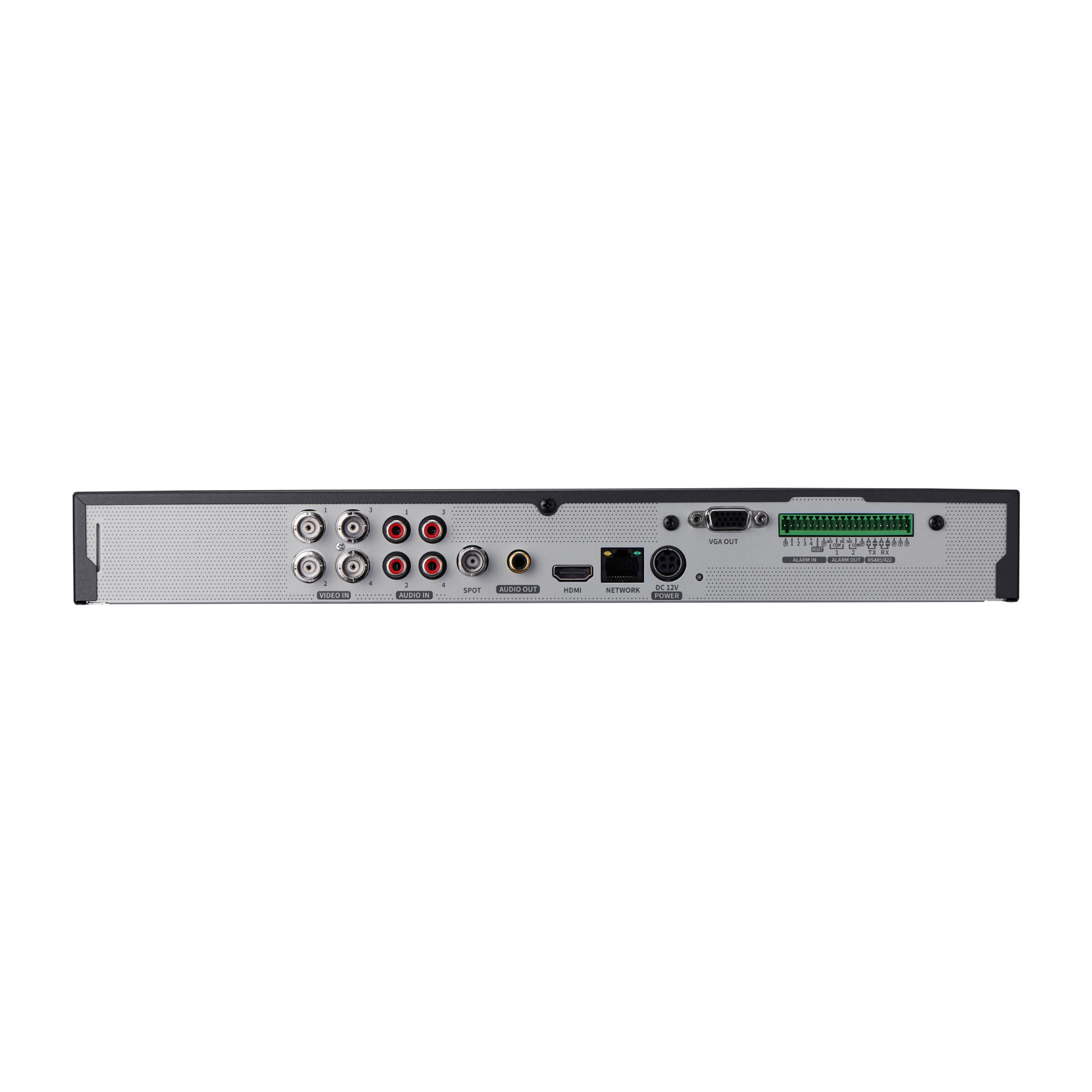

Hanwha HRX-421
POSMarket SKU: Z14796
This model is a special order item. Please contact one of our experts on 1300 737 998 for details.
Hanwha Wisenet 4ch Pentabrid Digital Video Recorder, AHD/TVI/ CVI/CVBS/IP
Product Overview
The HAN-HRX-421 can run 4 analogue cameras, with up to 2 additional IP cameras, or when running IP only provides 6 available channels. This recorder produces up to 4K UHD resolution and can hold up to two 6TB hard drives totalling 12TB of storage. The Pentabrid recorder can convert any channel, at any time between analogue and IP with a simple software switch so there's no additional investment needed. The Pentabrid line offers a familiar interface while accepting multiple camera brands and technologies such as AHD, TVI, CVI, CVBS and IP.
FEATURES
- 5-in-1 4CH Pentabrid DVR
- AHD/HDTVI/HDCVI/CVBS/IP inputs
- Max. analogue 4CH and NW 2CH (max. 6CH), up to 8MP
- H.265, H.264, MJPEG
- 8fps at 8MP, 12fps at 5MP, 30fps at 2MP recording
- Coaxial control
- Smart search (only network camera)
- 2 HDD bays up to 12TB of total storage
- HDMI/VGA monitor
- P2P service (QR code connect)
Product Specifications
| Display | |
| Analog camera | |
| Inputs | 4CH(1Vp-p 75ohm, BNC) |
| Signal Type | AHD(8MP, 5MP, 4MP, 1080p, 720p) HDTVI(8MP, 5MP, 4MP, 1080p, 720p) HDCVI(5MP, 4MP, 1080p, 720p) CVBS(NTSC/PAL) |
| Network camera | |
| Inputs | Max. 6CH |
| Resolution | 8MP ~ CIF |
| Protocols | SUNAPI(Wisenet), ONVIF |
| Live | |
| Local Display | HDMI: 3840 x 2160, 1920x1080, 1280x720 VGA: 1920x1080, 1280x720 |
| Resolution | [Analog Camera(NTSC/PAL)] - 8MP(15/12fps), 5MP(20/12fps), 4MP(30/25fps), 2MP(30/25fps),1MP(30/25fps), 960H(or 720H)(30/25fps) * per CH [Network Camera] - Typ. 2MP(120fps) |
| Performance | |
| Record | |
| Compression | H.265, H.264, MJPEG |
| Record Rate(Analog) | Analog Camera(NTSC/PAL) (Main Stream) 8MP 8/8fps CH, 5M 12/12fps CH, 4M 15/12fps CH, 2M 30/25fps CH, 720p 30/25fps/CH, SD 30/25fps/CH (Sub Stream) 720p or higher : 640x360 full fps/CH, SD sugnal : upto SD full fps/CH * The maximum recording frame rate depends on the frame rate of the input camera. |
| Recording Bandwidth | Max. 25Mbps (Analog Camera only) ~ 17Mbps (Network Camera only) |
| Resolution | 8MP ~ CIF |
| Mode | Manual, Schedule (Continuous/Event), Event(Pre/Post), Dual Track |
| Event Trigger | Alarm Input Analog Camera : Video Loss, Motion Detection,Tampering Network Camera : Camera Event (Sensor, MD, Video analytics), VA event (Tampering, Enter / Exit, Passing, Virtual- line, (Dis)Appear, Face Detection, Audio detection), Defocus camera event |
| Event Action | E-mail, PTZ preset, Alarm out, Buzzer, Monitor out |
| Search & Play | |
| Playback Bandwidth | Max. 32Mbps (6CH simultaneously) |
| User Max. 4 Users (Local 1, Remote 3) Simultaneous playback | 6CH(Local Monitor) 4Ch (CMS, Wisenet Mobile), 1Ch(Web) |
| Fisheye Dewarping | WEB / CMS |
| Storage Supported HDD | Up to 6TB |
| HDD Slot | SATA 2ea(Max 12TB) |
| Backup | |
| File backup | BU, EXE(Include Player), AVI(Webviewer only) |
| Function | Max. 6 CH play, Date-time/title display |
| Functions | |
| PTZ | |
| Control | Via GUI, Webviewer, SSM, SmartViewer, Wisenet Mobile Viewer, System Controller |
| Smart phone Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) |
| Control | Live(4ch) : Multi-Profile Support Playback(4Ch Multi Playback, Max 2MP) Event push |
| Max. Remote Users | Search(3), Live Unicast(10) |
