Hanwha HRX-821
$957.69 (incl. GST)
POSMarket SKU: Z14794
HRX-821: Hanwha Wisenet 8ch Pentabrid Recorder, AHD/TVI/ CVI/CVBS/IP, 4x SATA, No HDD
Hanwha Wisenet 8ch Pentabrid Digital Video Recorder, AHD/TVI/ CVI/CVBS/IP
Product Overview
Hanwha's Pentabrid video recorder range is a rare find in the market as they allow both analogue and IP cameras to connect and run simultaneously on the same unit. These recorders are a fantastic way to introduce the latest technology into existing sites or to prepare for future migrations to IP.
The HRX-821 or the HAN-HRX-821 can run 8 analogue cameras, with up to 2 additional IP cameras, or when running IP only provides 10 available channels. This recorder produces up to 4K UHD resolution and can hold up to four 6TB hard drives totalling 24TB of storage. The Pentabrid recorder can convert any channel, at any time between analogue and IP with a simple software switch so there's no additional investment needed. The Pentabrid line offers a familiar interface while accepting multiple camera brands and technologies such as AHD, TVI, CVI, CVBS and IP.
FEATURES
The HRX-821 or the HAN-HRX-821 can run 8 analogue cameras, with up to 2 additional IP cameras, or when running IP only provides 10 available channels. This recorder produces up to 4K UHD resolution and can hold up to four 6TB hard drives totalling 24TB of storage. The Pentabrid recorder can convert any channel, at any time between analogue and IP with a simple software switch so there's no additional investment needed. The Pentabrid line offers a familiar interface while accepting multiple camera brands and technologies such as AHD, TVI, CVI, CVBS and IP.
FEATURES
- 5-in-1 8CH Pentabrid DVR
- AHD/HDTVI/HDCVI/CVBS/IP inputs
- Max. analogue 8CH and NW 2CH (max. 10CH), up to 8MP
- H.265, H.264, MJPEG
- 8fps at 8MP, 12fps at 5MP, 30fps at 2MP recording
- Coaxial control
- Smart search (only network camera)
- 4 SATA HDD bays up to 24TB of total storage
- HDMI/VGA dual monitor
- P2P service (QR code connect)
Product Specifications
| Display | |
| Analog camera | |
| Inputs | 8CH(1Vp-p 75ohm, BNC) |
| Signal Type | AHD(8MP, 5MP, 4MP, 1080p, 720p) HDTVI(8MP, 5MP, 4MP, 1080p, 720p) HDCVI(5MP, 4MP, 1080p, 720p) CVBS(NTSC/PAL) |
| Network camera | |
| Inputs | Max. 10CH |
| Resolution | 8MP ~ CIF |
| Protocols | SUNAPI(Wisenet), ONVIF |
| Live | |
| Local Display | 1x HDMI, 1x VGA (Dual monitor) HDMI: 3840 x 2160, 1920x1080, 1280x720 (1920x1080, Clone mode) VGA: 1920x1080, 1280x720 |
| Resolution | [Analog Camera(NTSC/PAL)] - 8MP(15/12fps), 5MP(20/12fps), 4MP(30/25fps), 2MP(30/25fps),1MP(30/25fps), 960H(or 720H)(30/25fps) * per CH [Network Camera] - Typ. 2MP(480fps) |
| Performance | |
| Record | |
| Compression | H.265, H.264, MJPEG |
| Record Rate(Analog) | Analog Camera(NTSC/PAL) (Main Stream) 8MP 8/8fps CH, 5M 12/12fps CH, 4M 15/12fps CH, 2M 30/25fps CH, 720p 30/25fps/CH, SD 30/25fps/CH (Sub Stream) 720p or higher : 640x360 full fps/CH, SD sugnal : upto SD full fps/CH * The maximum recording frame rate depends on the frame rate of the input camera. |
| Recording Bandwidth | Max. 40Mbps (Analog Camera only) ~ 28Mbps (Network Camera only) |
| Resolution | 8MP ~ CIF |
| Mode | Manual, Schedule (Continuous/Event), Event(Pre/Post), Dual Track |
| Event Trigger | Alarm Input Analog Camera : Video Loss, Motion Detection,Tampering Network Camera : Camera Event (Sensor, MD, Video analytics), VA event (Tampering, Enter / Exit, Passing, Virtual- line, (Dis)Appear, Face Detection, Audio detection), Defocus camera event |
| Event Action | E-mail, PTZ preset, Alarm out, Buzzer, Monitor out |
| Search & Play | |
| Playback Bandwidth | Max. 32Mbps (10CH simultaneously) |
| User Max. 4 Users (Local 1, Remote 3) Simultaneous playback | 10CH(Local Monitor) 4Ch (CMS, Wisenet Mobile), 1Ch(Web) |
| Fisheye Dewarping | WEB / CMS |
| Storage Supported HDD | Up to 6TB |
| HDD Slot | SATA 4ea(Max 24TB) |
| Backup | |
| File backup | BU, EXE(Include Player), AVI(Webviewer only) |
| Function | Max. 10 CH play, Date-time/title display |
| Functions | |
| PTZ | |
| Control | Via GUI, Webviewer, SSM, SmartViewer, Wisenet Mobile Viewer, System Controller |
| Smart phone Support Model | iOS, Android |
| Protocol Support RTP, RTSP, HTTP, CGI(SUNAPI) Control | Live(8ch) : Multi-Profile Support Playback(4Ch Multi Playback, Max 2MP) Event push |
| Max. Remote Users | Search(3), Live Unicast(10) |
| Redundancy | |
| ARB | Support |
| Easy configuration | Setup Wizard (Language Date/Time, Password, Network, Auto Camera Configuration), P2P (QR code) |
| Coaxial Control | CVBS(Pelco-C)/AHD/CVI/TVI |

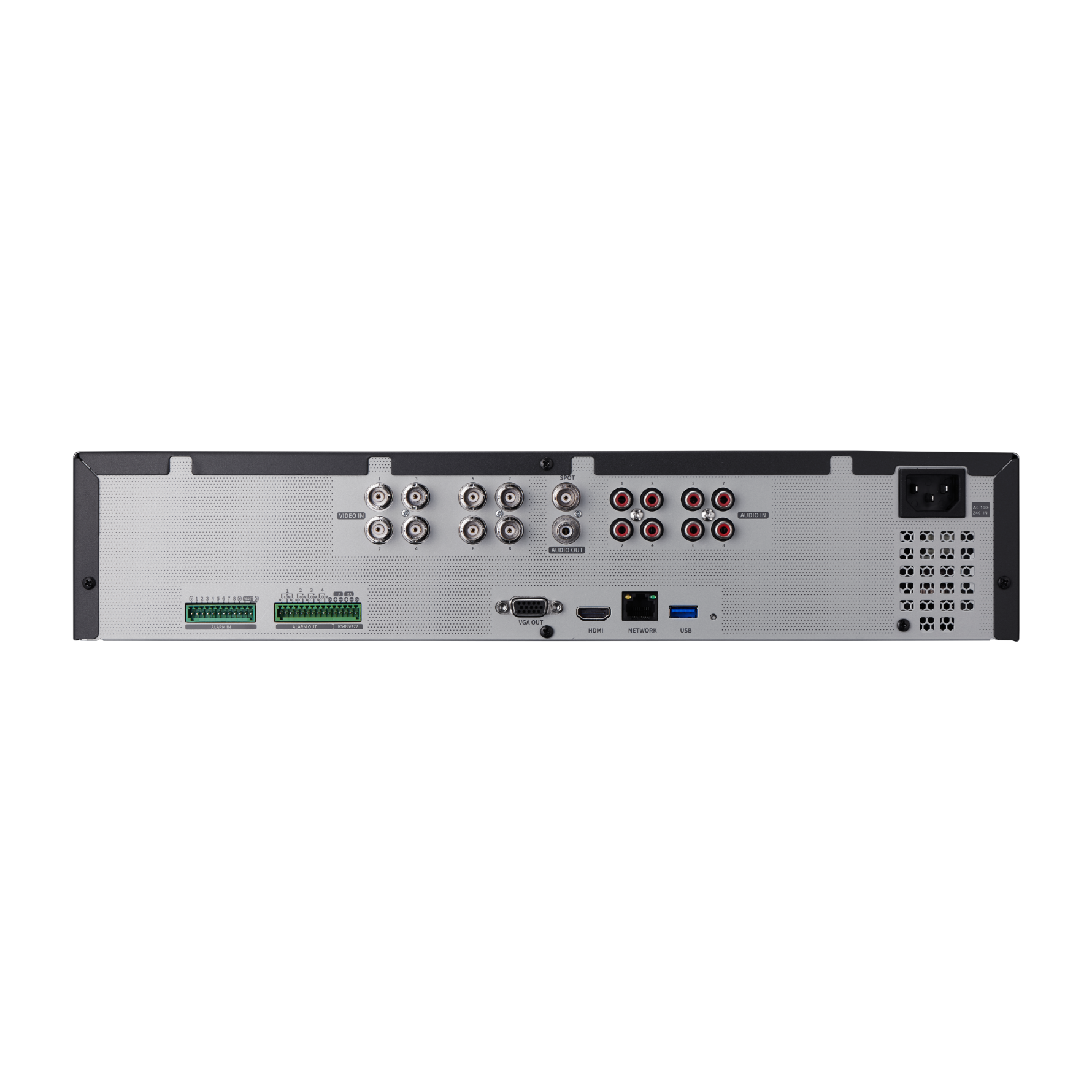

| Interface | |
| HDMI | 1EA |
| VGA | 1EA |
| BNC | 8CH In / 1CH Out(Spot Output) |
| Audio | Out(1EA, RCA, Line) |
| Ethernet | RJ-45(10/100/1000BASE-T) |
| Alarm | In 16EA, Out 4EA - Relay Out1(NO/NC/COM) - Relay Out2~4(NO/COM) |
| USB | 2EA(Front USB2.0, Rear USB 3.0)) |
| Serial(Protocols) | RS-485 (Samsung-T/Pelco-D/Pelco-p) * for PTZ |
| Power inlet | 1EA AC |
