Axis F34

The Axis F34 Surveillance System offers in one box all the components needed to deploy a discreet and cost-efficient solution for multi-view surveillance. The system enables simultaneous streaming of HDTV 720p videos from four different areas through one Ethernet port. The sensor units can be recessed- or surface-mounted using the included accessories. Video is stored locally on SD cards that are specifically engineered to handle continuous overwriting for lasting performance. With Axis' Zipstream technology, the solution provides efficient video compression, enabling lower bandwidth and storage use. AXIS Companion Line 3.10 software provides secure remote monitoring and video management from a PC or mobile phone.

Each channel of AXIS F34 supports a 1080p or 720p capture mode and multiple, individually configurable streams. AXIS F34 can operate any combination of the two modes across the channels simultaneously. A capture mode sets the maximum resolution and frame rate. In the 1080p mode, the maximum resolution is 1080p (1920 x 1080 pixels) and the maximum frame rate is 12.5/15 frames per second (50/60 Hz). It provides the full viewing angle from a 1080p sensor unit. In the 720p capture mode, the maximum resolution is 720p (1280 x 720 pixels) and the maximum frame rate is 25/30 frames per second (50/60 Hz). It provides a cropped view for a 1080p sensor unit and the full view for a 720p sensor unit like AXIS F1004. In either 1080p or 720p capture mode, AXIS F34 supports quad view streaming, which combines separate views from four sensor units into one for simultaneous viewing. Each scene would take up a quarter of the display area.

AXIS F34 supports Axis’ Zipstream technology, which is a more efficient implementation of the H.264 video encoder. It can lower bandwidth and storage use by an average of 50% or more for many surveillance scenarios. It ensures that important details are maintained while unnecessary data is removed.

FEATURES

• AXIS F34 Main Unit streams HDTV 720p videos from four AXIS F1004 Sensor Units simultaneously
• Axis' Zipstream technology
• Storage on two AXIS Surveillance microSDXC Card 64 GB
• AXIS Companion for video management and secure remote monitoring

EQUIPMENT INCLUDED FOR A COMPLETE SYSTEM

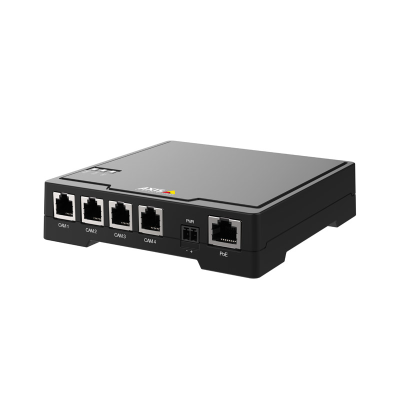

1x AXIS F34 Main Unit and mains adapter PS-P T-C
4x AXIS F1004 Sensor Units and AXIS F7315 cables
4x AXIS F8214 Dome Accessory
4x AXIS F8224 Recessed Accessory
2x AXIS Surveillance microSDXC Card 64 GB
