Generic CK-ACC-PACK
$587.13 (incl. GST)
POSMarket SKU: Z15854
CK-ACC-PACK: CCTV Accessories Pack with 22" Monitor, 750VA PowerShield UPS , 1.8m HDMI, 305m Yellow Cat5e
CCTV Accessories Pack
Product Overview
This CCTV Accessories Pack combined with the NVR and Cameras provides everything required for a basic CCTV System installation.
This kit includes:
1 x Mitsumaru 22 inch Monitor 1080p, VGA, HDMI, 5ms, VESA, 3yr warranty
1 x PowerShield SafeGuard 750VA UPS
1 x High Speed HDMI Cable Male to Male, 1.8m, for NVRs and DVRs
1 x X2 Cable, Cat5e, 305m, Pull Box, Yellow
Features
This kit includes:
1 x Mitsumaru 22 inch Monitor 1080p, VGA, HDMI, 5ms, VESA, 3yr warranty
1 x PowerShield SafeGuard 750VA UPS
1 x High Speed HDMI Cable Male to Male, 1.8m, for NVRs and DVRs
1 x X2 Cable, Cat5e, 305m, Pull Box, Yellow
Features

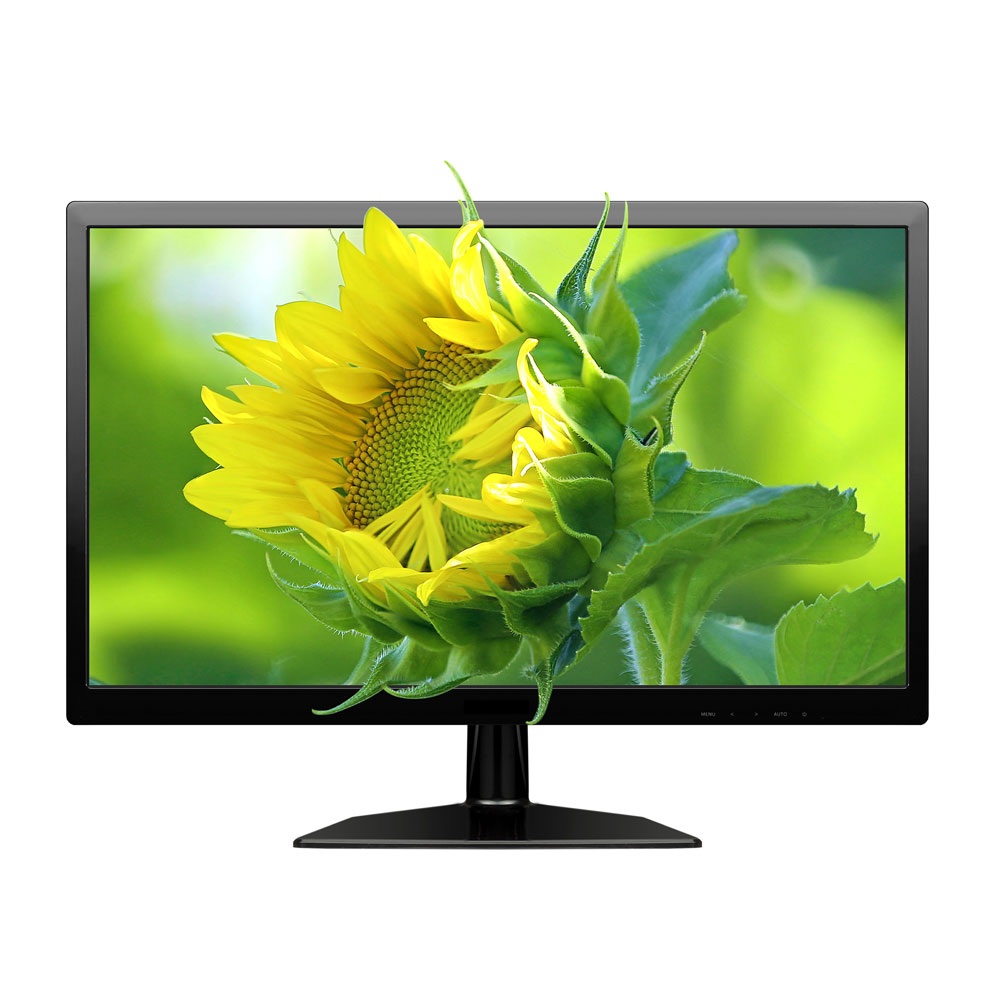

- Mitsumaru's MON-22-002 is a 22-inch monitor, which is manufactured to a high-quality standard and is especially suited for the security industry. Standard Vesa mount options, HDMI and audio out are all standard inclusions with this monitor.

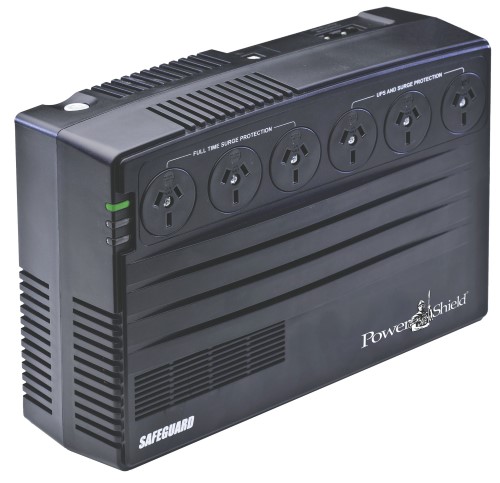

- The PowerShield SafeGuard is a 750VA Line Interactive UPS that provides a buffer between your equipment and an inconsistent mains power supply. This cost effective, compact device constantly stands guard beside your sensitive equipment. This UPS is one of the only powerboard style with AVR (Automatic Voltage Regulation). Anytime a power fluctuation occurs, this UPS will buck or boost the power within a ten percent variance of 240Vac. The SafeGuard provides three outlets of surge protected battery backup to keep essential systems running through power outages. It also provides three surge protected sockets for non-essential equipment and allows for User-replaceable batteries. Able to be either floor or wall mounted, this UPS is ideal for the electrical protection of computer, telephone system or small CCTV equipment.

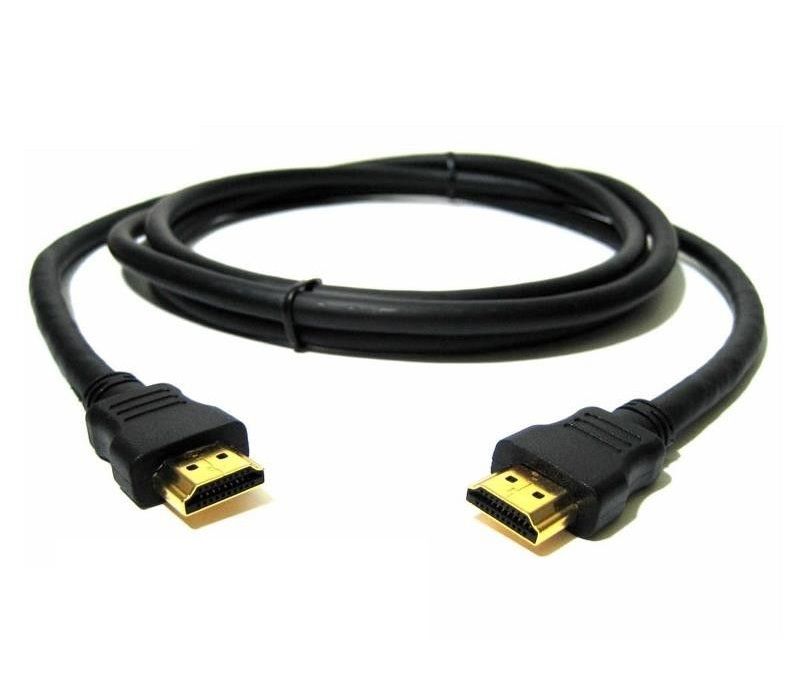

- The HDMI-1.8 High Speed HDMI cable incorporates 2 gold-plated HDMI male connectors and durable high quality construction to provide a dependable HDMI to HDMI connection between devices such as Blu-Ray players, HDTVs, DVD Players, AV receivers, projectors, HTPCs and much more.

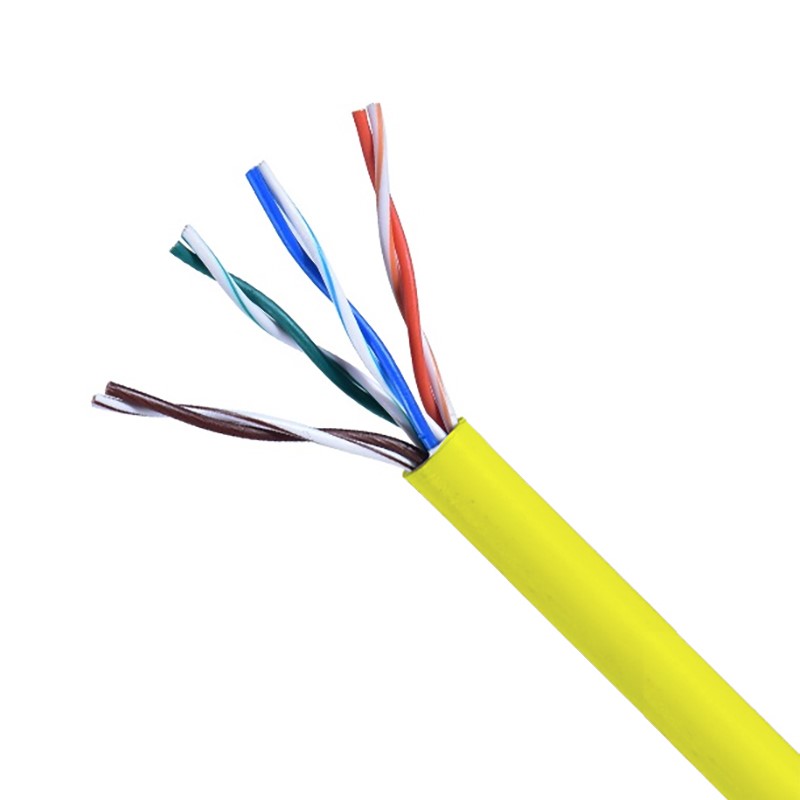

- X2 UTP Cat 5e data cables are designed and manufctured to meet Australian specifications. A ripcord beneath the sheath allows for easier stripping and metre marking along the sheath makes it easy and convenient for the installer to identify remaining cable length.
Product Specifications
| CAB-HDMI-1.8 | |
| HDMI type | A male and DP male connectors |
| Length | 1.8 m |
| Net weight | 138 g |
| X2-CABLE-501 | |
| Product type | X2-Cable |
| Details | Cat5e |
| Length | 305m Pull Box |
| Color | Yellow |
| SAFEGUARD 750 | |
| Model Number | PSG750 |
| Capacity | 750VA / 450W Line interactive |
| Input | |
| Voltage | 240Vac (Nominal) |
| Voltage range | 177 to 290Vac |
| Frequency | 50Hz or 60Hz (Auto sensing) |
| Output | |
| Output Voltage | 240Vac +/-10% |
| Frequency range (Batt. Mode) | 50Hz or 60Hz +/--1Hz |
| Transfer time | 6 msec (Typical) |
| Wave Form (Batt. Mode) | Simulated Sine Wave |
| Australian Outlets | 3 (UPS and Surge Protection) |
| Australian Outlets | 3 (Full Time Surge Protection) |
| Battery | |
| Capacity | 12V*9AH |
| Backup Time | 25 min (1 PC load at 100W) |
| Typical Recharge Time | 8 hours recover to 90% capacity |
| Protection | |
| Full protection | Overcharge, discharge, short circuit and thermal protection |
| Surge protection | 468Joules /11000Amps - Best in its class |
| Data protection | Tel/LAN, RJ45 connector |
| Communications & Management | |
| Interface | USB interface |
| Software | PowerShield® NetGuard® supports Windows, Linux, Unix & Mac |
| HID | Supports Windows, Apple, Linux, NAS and various industrial controllers |
| LED | Alarm AC Mode, Battery Mode, Low Battery (Batt. Mode), Fault |
| Audible | Alarm Battery Mode, Low Battery (Batt. Mode), Fault |
| Physical | |
| Dimensions L x W x H (mm) | 292 x 91 x 199 |
| Weight (kgs) | 6.5 |
| Operating Enivironments | |
| Temperature | 0 - 400°C |
| Humidity | 0-90% (RH Non-condensing) |
| Noise level | <5dB (No Fan) |
| M O N- 2 2 – 002 | |
| Display | 21.5" Diagonal White LED-Backlight |
| Max Resolution | 1920 x 1080 |
| Brightness | 220cd/m2 |
| Contrast | 1200:01:00 |
| Response Tim | e 5ms |
| Display Colour | 16.7 million colours |
| Viewing Angle | 178 deg Horizontal / Vertical |
| HDMI | 1x HDMI Input |
| VGA | 1x VGA Input |
| Audio | 3.5mm jack output |
| VESA Mounting | 100 x 100mm (M4) |
| Power Supply | DC 12V-2.5A |
| Power Consumption On | < = 24W |
| Power Consumption Standby | < = 0.5W |
| Power Consumption Off | < = 0.5W |
| Operation Temperature | 0 degrees C to 40 degrees C |
| Operating Temperature | 20% to 85%, non-condensing |
| Dimensions | 550 x 16 x 310mm (WxHxD) |
| Dimensions with Stand | 550 x 110 x 420 (WxHxD) |
| Weight | 2.3kg |
| Accessories | Adaptor & cables (VGA & HDMI) |
