Aetek SD-201
POSMarket SKU: Z15612

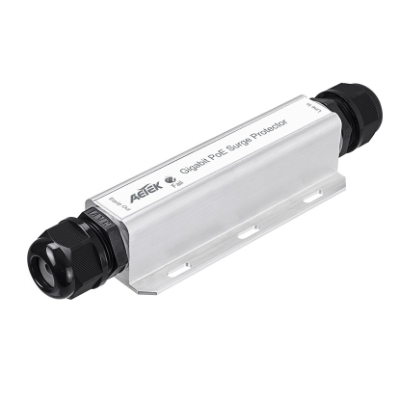

SD-201: Aetek Outdoor PoE Surge Protector, -40 - 85 degree
1-CH Outdoor 802.3af / 802.3at / 802.3bt / UPoE PoE Surge Protectors
Product Overview
With a robust operating temperature range, the SD-201 will prevent surges of up to 10KA and features plug-and-play installation. Further, The SD-201 can be deployed on either a wall or pole mount and has the added protection of an IP-66-rated metal enclosure for guaranteed operation in any environment.
Product Specifications
| Hardware Specifications | |
| Number of Ports | 1 |
| Pass Through Data Rates | 10M/100M/1G/2.5G bps |
| Transmission Media | Cat. 5e,6 UTP/STP |
| PoE Supoort | 802.3af / 802.3at /802.3bt/UPoE |
| Max Discharge Current (8/20us) | 10KA |
| Maximum Operation DC Voltage | 60VDC |
| Maximum Operation DC Current | 1A for 2 pair, 2A for 4 pair, 95W maximum |
| Common Mode Protection Level (10/700us) | 20KV |
| Differential Mode Protection Level (10/700us) | 4KV |
| Clamping Voltage (Line to GND) | 600V |
| Clamping Voltage (Line to Line) | 20V |
| Insertion Loss @ 10MHz/100MHz | 1db |
| Return Loss @ 10MHz/100MHz | -20db |
| Response Time | 5ns |
| Mechanical Specifications | |
| Dimensions (L x W x H) | 186.2 x 50 x 32 mm |
| Weight | 0.27KG |
| Connectors | PG16(RJ45) x 2 |
| Environmental Specifications | |
| Weather Rating | IP66 |
| Operating Temperature | -40°C~ 85°C (-40°F~ 185°F) |
| Storage Temperature | -40°C~ 85°C (-40°F~ 185°F) |
| Operating Humidity | 5% ~ 95% non-condensing |
| Certifications | EMC CE, FCC, VCCI, C-Tick |
| Surge | ITU-T K.21 IEC-61643-21 IEC-61000-4-5 TIA-968-A (FCC Part68) |
