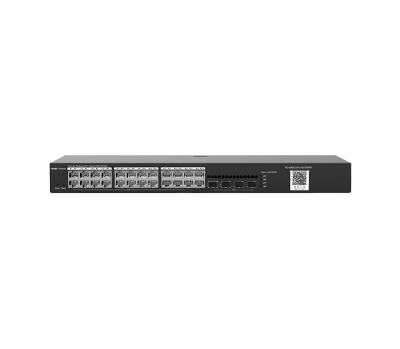

Reyee RG-NBS3100-24GT4SFP-P
POSMarket SKU: Z18145
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.
RG-NBS3100 Series L2 Gigabit Cloud Managed Switches
Product Overview
In the office network, in order to isolate network access between different departments to avoid PCs infected by virus affecting the entire network, it is often necessary to divide the internal network into VLANs according to departments, floors, etc. to isolate the broadcast domain and improve the stability of the network. Ruijie Real-easy Series managed switches provide a convenient and flexible way to divide VLANs, allowing you to assign the ports to different VLANs as needed. Users in different VLANs do not affect each other, creating a more stable network for the users.
Features
- Flexible VLAN Division
- Energy Saving
- Surge Protection Ensuring Product Stability
- MANET for switches allowing one-step Project Management
- Ruijie Cloud App/Ruijie Cloud Platform remote management
Product Specifications
| RG-NBS3100-24GT4SFP-P | |
| Fixed ports | 24 10/100/1000Base-T ports (support PoE and PoE+), 4 SFP 1000Base-X ports, 370W PoE power |
| Switching capacity | 336Gbps |
| Packet forwarding rate | 42Mpps |
| MAC address | Support static MAC address, MAC address filtering |
| MAC address table size | 8K |
| Number of VLANs | 4094 |
| Link aggregation | Support |
| Port mirroring | Many-to-one mirroring |
| Spanning tree | STP, RSTP |
| LLDP | Support |
| IP routing | N/A |
| ACL | IP standard ACL MAC extended ACL IP extended ACL Port ACL for Layer 2 ports (physical port / AP) |
| QoS | Port-based speed limit (ingress/egress) |
| Security | Port protection, Hardware CPP |
| Management | Web management, Ruijie Cloud or Ruijie Cloud app management |
| DHCP | DHCP snooping |
| EEE | Support |
| Physical specifications | |
| Dimensions | 440×293×44mm |
| PoE | 24 Base-T ports (support PoE and PoE+) Maximum PoE / PoE+ output power per switch: 370W Maximum output power per port: 30W |
| Temperature | |
| Operating temperature | 0 °C ~ 50 °C |
| Storage temperature | -40 °C ~ 70 °C |
| Humidity | Operating humidity: 10% ~ 90% RH Storage humidity: 5% ~ 90% RH |

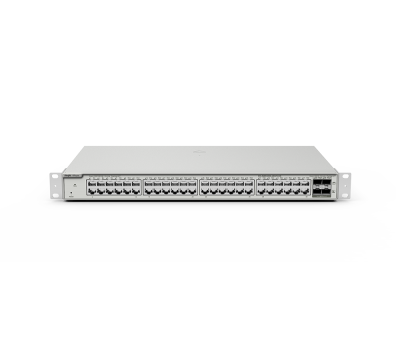

| RG-NBS3200-48GT4XS-P | |
| Fixed ports | 48 10/100/1000Base-T ports (support PoE and PoE+), 4 SFP+ 10GBase-X ports |
| Switching capacity | 336Gbps |
| Packet forwarding rate | 132Mpps |
| MAC address | Support static MAC address, MAC address filtering |
| MAC address table size | 16K |
| Number of VLANs | 4094 |
| Link aggregation | Support |
| Port mirroring | Many-to-one mirroring |
| Spanning tree | STP, RSTP |
| LLDP | Support |
| IP routing | N/A |
| ACL | IP standard ACL MAC extended ACL IP extended ACL Port ACL for Layer 2 ports (physical port / AP) |
| QoS | Port-based speed limit (ingress/egress) |
| Security | Port protection Hardware CPP |
| Management | Web management, Ruijie Cloud or Ruijie Cloud app management |
| DHCP | DHCP snooping |
| EEE | Support |
| Physical specifications | |
| Dimensions | 440×267.5×43.6mm |
| PoE | 48 Base-T ports (support PoE and PoE+) Maximum PoE / PoE+ output power per switch: 370W Maximum output power per port: 30W |
| Temperature | |
| Operating temperature | 0°C ~ 50 0°C |
| Storage temperature | -40 0°C ~ 70 0°C |
| Humidity | Operating humidity: 10% ~ 90% RH Storage humidity: 5% ~ 90% RH |
Product Videos
Please contact our team using the Ask an Expert form or call us on 1300 737 998.
