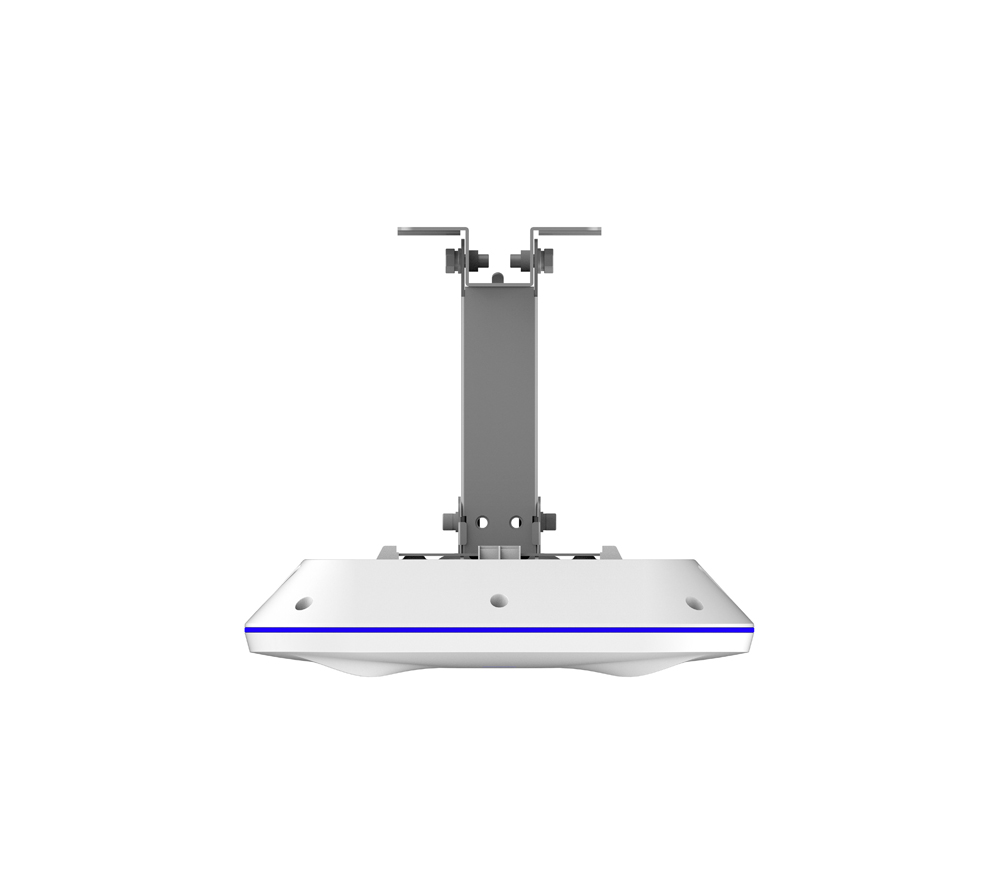

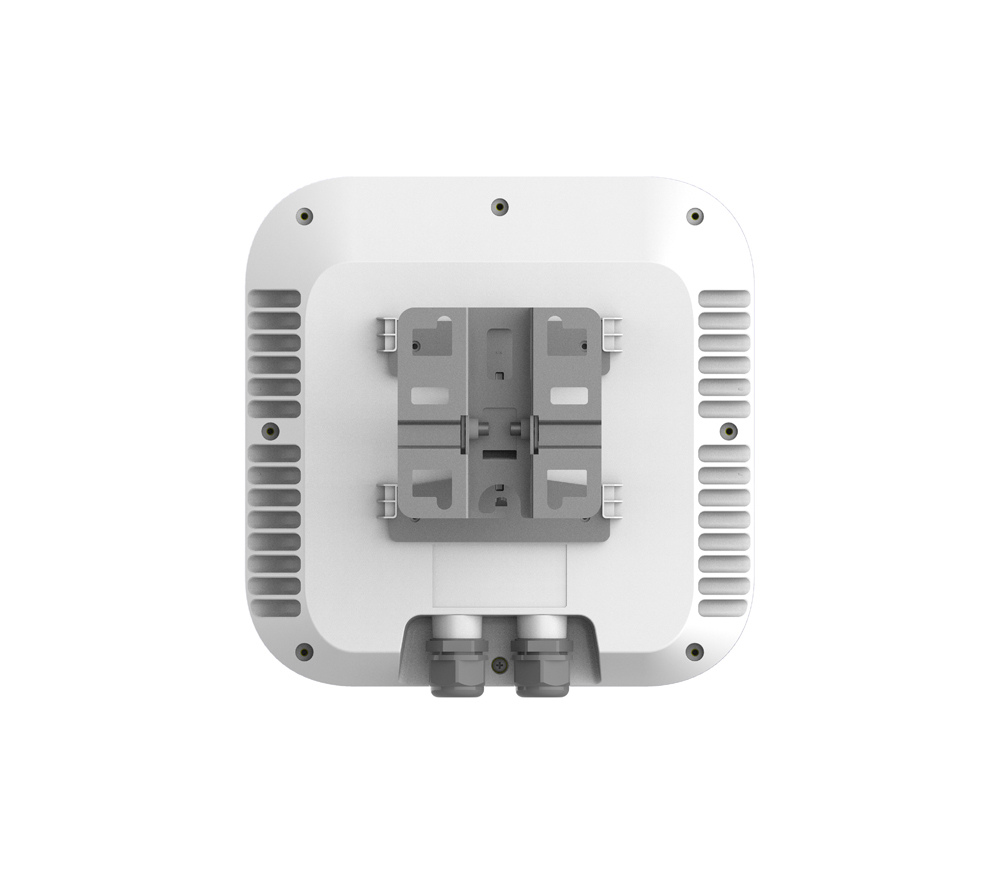

Reyee RG-RAP6260(G)
$442.75 (incl. GST)
POSMarket SKU: Z18137
RG-RAP6260(G): Outdoor AP
High-performance AX1800 Wi-Fi 6 Dual Band Gigabit Outdoor Access Point
Product Overview
The Reyee RG-RAP6260(G) is one of the wireless products fully developed by Ruijie Reyee. The device supports 802.3at PoE In power supply. With concurrent 2.4GHz and 5GHz, the AP supports dual-band dual-stream MIMO technology, providing 574Mbps at 2.4G, and 1201Mbps at 5G.
The RG-RAP6260(G) applies for IP68 protection on the outer shell design, which is suitable in the outdoor environment and voids the influence from the extreme condition. The device meets the demanding requirements, such as able to perform under ultra-cold and humid weather. This reduces the difficulty of installation and maintenance. RG-RAP6260(G) supports Power over Ethernet remote mode, which is highly suitable for many scenarios such as education, government, medical, finance, business.
Features
The RG-RAP6260(G) applies for IP68 protection on the outer shell design, which is suitable in the outdoor environment and voids the influence from the extreme condition. The device meets the demanding requirements, such as able to perform under ultra-cold and humid weather. This reduces the difficulty of installation and maintenance. RG-RAP6260(G) supports Power over Ethernet remote mode, which is highly suitable for many scenarios such as education, government, medical, finance, business.
Features
- 802.11ax WiFi-6 supporting speeds up to 1775 Mbps
- Dual band dual stream (2x2:2)
- Managed with Ruijie Cloud Controller for seamless onboarding and roaming between APs
- Up to 512 simultaneous users per access point (100 recommended)
- 802.3af/at PoE or 12 Vdc power supply
- 1x gigabit ethernet port, 1x gigabit SFP Port
Product Specifications
| RG-RAP6260(G) | |
| Radio | Dual-stream dual-band |
| Protocol | Concurrent 802.11a/b/g/n/ac/ax |
| Operating Bands | 802.11b/g/n/ac/ax ：2.4G ~ 2.4835GHz 802.11a/n/ac/ax： 5G：5.150～5.350GHz，5.725～5. (country specific) |
| Antenna | Internal antennas (2.4G: 4dBi，5G: 6dBi) |
| Spatial Streams | 2.4G 2x2MIMO 5G 2x2MIMO |
| Max Throughput | Up to 575Mbps at 2.4G Up to 1200Mbps at 5G Totally 1775Mbps per AP |
| Modulation | DBPSK/DQPSK/CCK(DSSS)/BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM |
| Receive Sensitivity | 11b：-91dBm(1Mbps)，-88dBm(5Mbps)，-85dBm(11Mbps) 11a/g：-89dBm（6Mbps），-80dBm（24Mbps），-76dBm（36Mbps），-71dBm（54Mbps） 11n：-83dBm@MCS0，-65dBm@MCS7，-83dBm@MCS8，-65dBm@MCS15 11ac HT20：-83dBm（MCS0）, -57dBm（MCS9） 11ac HT40：-79dBm（MCS0）, -57dBm（MCS9） 11ac HT80：-76dBm（MCS0）, -51dBm（MCS9） 11ax：HE80：-82dBm（MCS0）, -57dBm（MCS9）,-52dBm（MCS11） |
| Maximum Output Power of the Transmitter (Single Stream) | 2.4GHz(2.4~2.4835GHz)：26dBm 5GHz(5.150~5.250GHz,5.725~5.850GHz)：25dBm（country-specific，comply with local laws） |
| Adjustable Power | 1dBm |
| Dimensions | 298mm×298mm×65mm (excluding mounting kits) |
| Weight | ≤1.35kg (excluding mounting kits) |
| Service Ports | 1 10/100/1000 Base-T Ethernet port supports PoE INï¼› 1 100/1000 Base-X SFP Port |
| Management Port | N/A |
| LED Indicator | Single indicator (Blue light) |
| Power Supply | 802.3af/802.3 at PoE |
| Power Consumption | ≤17W |
| Bluetooth | Support |
| Environment | |
| Operating Temperature | -40°C～65°C |
| Storage Temperature | -40°C～85°C |
| Operating humidity | 0%～100%, non-condensing |
| Storage humidity | 0%～100%，condensing/non-condensing |
| Installation | Ceiling/Wall-Mountable |
| Safety Standard GB4943〠| IEC 60950-1 |
| EMC Standard GB9254 | ã€EN301 489，EN50155：EN50121 |
| Vibration Standard | IEC61373 |
| Radio Standard | EN300 328，EN301 893 |
| MTBF | >400000H |
| WLAN | Maximum number of clients: 512 Recommended number of clients: 100 Up to 8 SSID Support SSID hiding Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID SSID-based and radio-based STA limit Support Layer 2 user isolation |
| Roaming | Support layer 2 and layer 3 roaming |
| Security | Support PSK authentication Support static blacklist and whitelist Support WPA（TKIP）,WPA2（AES）,WPA-PSK data encryption |
| Routing | Support static IP address, DHCP, PPPoE Dial |
| Management and Maintenance | Support unified networking of all network equipment Support local or remote management with Ruijie Cloud APP Support local management with web Support remote management with Ruijie Noc Cloud platform |
| Platform Management Features | Automatic RF adjustment via the platform Unified configuration via the platform Unified monitoring via the platform |
