Axis FA54
$1,090.65 (incl. GST)
POSMarket SKU: Z14874

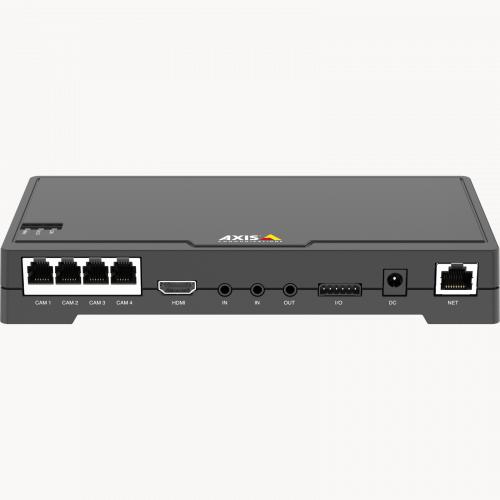

0878-006: FA54 Main Unit to suit FA Series Sensor Units, 1080p, WDR, Zipstream, Audio
Axis' High-performance multi-view surveillance with Forensic WDR main unit that supports Axis FA Sensor Units.
Product Overview
The AXIS FA54 supports up to four AXIS FA Sensor Units, enabling cost-effective and highly discreet surveillance of four closely situated areas with one system. The main unit can stream full frame rate HDTV 1080p videos from four sensor units simultaneously using one IP address. Ideal for retail applications, AXIS FA54 also supports quad view streaming and has an HDMI TM port for connection to a surveillance or public view monitor. The unit uses Forensic WDR (wide dynamic range) that is tuned for motion. Axis Zipstream video compression technology reduces bandwidth and storage requirements.

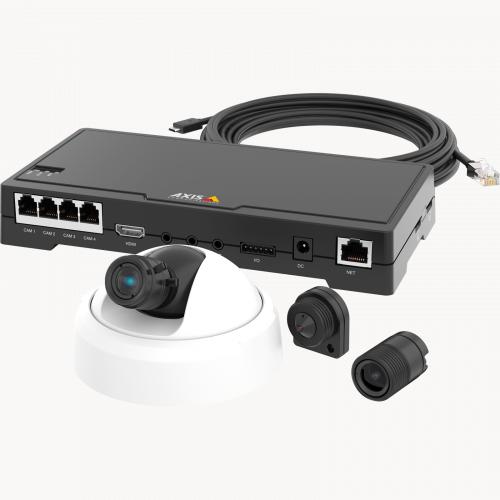

Like all modular camera systems, AXIS FA Series is based on a divided network camera concept, where the camera is split into a sensor unit (made up of a lens and image sensor) and a main unit (the body of a camera). The units are connected by a cable, which is supplied with the sensor unit. With AXIS FA Series, the main and sensor units are sold separately, so you can choose the most suitable sensor units for your application. Note that the main and sensor units in AXIS FA Series cannot be used in combination with the main and sensor units in AXIS F Series.
FEATURES
Like all modular camera systems, AXIS FA Series is based on a divided network camera concept, where the camera is split into a sensor unit (made up of a lens and image sensor) and a main unit (the body of a camera). The units are connected by a cable, which is supplied with the sensor unit. With AXIS FA Series, the main and sensor units are sold separately, so you can choose the most suitable sensor units for your application. Note that the main and sensor units in AXIS FA Series cannot be used in combination with the main and sensor units in AXIS F Series.
FEATURES
- Full frame rate HDTV 1080p streams from four sensor units
- Forensic WDR
- Quad view stream, Axis Zipstream and Corridor Format
- HDMI output, two-way audio, I/Os, two microSD card slots, 12 V DC
Product Specifications
| Video | |
| Video compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG |
| Resolution | 1920x1080 (1080p) to 480x270 |
| Wide dynamic range | Forensic WDR Frame rate In 1080p: up to 25/30 fps (50/60 Hz) Video streaming Multiple, individually configurable streams in H.264 and Motion JPEG Axis Zipstream technology in H.264 Controllable frame rate and bandwidth VBR/MBR H.264 Quad view, max 1080p resolution HDMI |
| HDMI output | Single camera source Quad view Playlist: single camera sources, still images 1080p 30/25/24 fps (50/60 Hz) 720p 50/60 fps (50/60 Hz) 576p 50 fps (50/60 Hz) 480p 60 fps (50/60 Hz) |
| Image settings | Compression, color, brightness, sharpness, contrast, white balance, exposure value, exposure control, exposure zones, local contrast, rotation, Corridor Format, text and image overlay, privacy mask, mirroring of images |
| Audio | |
| Audio streaming | Two-way, full duplex and half duplex |
| Audio compression | AAC-LC 8/16/32/48 kHz, max 128 kbit/s G.711 PCM 8 kHz 64 kbit/s G.726 ADPCM 8 kHz 32 kbit/s or 24 kbit/s Opus 8/16/48 kHz, max 128 kbit/s Configurable bit rate |
| Audio input/output | External microphone input or line input, line output |
| Network | |
| Security | Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, Digest authentication, User access log, Centralized Certificate Management |
| Supported protocols | IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| System integration | |
| Application Programming Interface | Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at www.axis.com AXIS Video Hosting System (AVHS) with One-Click Connection ONVIF® Profile S and ONVIF® Profile G, specification at www.onvif.org |
| Analytics | Included AXIS Video Motion Detection Active tampering alarm, audio detection Support for AXIS Camera Application Platform enabling installation of third-party applications, www.axis.com/acap |
| Event triggers | Analytics, external inputs Edge storage events |
| Event actions | File upload: email, FTP, HTTP, HTTPS, network share Notification: email, HTTP, HTTPS and TCP Pre- and post-alarm video buffering |
| General | |
| Casing | Aluminum Plastic |
