Axis T90D20

from $1,090.65 (incl. GST)

POSMarket SKU: Z15151

This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.

Axis' High-performance illuminator with ease of installation

Product Overview

Based on the latest LED technology, the Axis T90D20 delivers more light where it is needed. It generates longer infrared LED illumination distance, minimises light wastage, and prevents overexposure of foreground objects. With interchangeable lenses, the angle of illumination can be modified to match your network camera's field of view. Axis T90D20 PoE IR-LED Illuminator comes with a pre-mounted 10º diverging lens, and it includes diverging lenses of 35º, 60º and 80º beam angle. Moreover, an optional 120º diverging lens is available.

You can simplify your solution with PoE-powered illuminator. The Axis T90D20 PoE IR-LED Illuminator offers a quick and reliable installation with a plug-and-play twisted pair cable. Create a flexible and cost-effective system by connecting the PoE illuminator with any PoE midspans or switches from Axis.

FEATURES
  • High and efficient IR LED performance
  • PoE-powered illuminator or AC/DC-powered illuminator
  • Flexible angle of infrared illumination
  • Various mounting options

Product Specifications

T90D20 IR LED Illuminator (PoE)
Compatibility Axis Cameras with IR Cut Filter
Wavelength 850 nm Semi-Covert
IR Range With Standard Lens 10 x 10°: 472' / 144 m
With Diverging Lens 35 x 10°: 256' / 78 m
With Diverging Lens 60 x 25°: 177' / 54 m
With Diverging Lens 80 x 30°: 118' / 36 m
With Optional Diverging Lens 120 x 50°: 79' / 24 m
Angle Without Diverging Lenses: 10°
With Diverging Lenses: 35, 60, 80, and 120°
Control Technology Through Integrated Push Buttons or Remote Control
Power Level, Photocell Sensitivity, Telemetry Link for Remote Activation, and Timer
Power Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4
Maximum Light: 20 W
Standby Mode: 2.2 W
Casing Aluminum and Polycarbonate
Mounting Options Wall, Ceiling, Pole, and Fixed Box Camera Housing
Operating Temperature -28to 122°F / -50 to 50°C
Storage Temperature -28 to 158°F / -50 to 70°C
Operating Humidity 10 to 100% RH
Dimensions 4.0 x 5.0 x 2.5" / 100 x 135 x 66 mm
Cable Length: 8.2' / 2.5 m
Weight 2.11 lb / 950 g

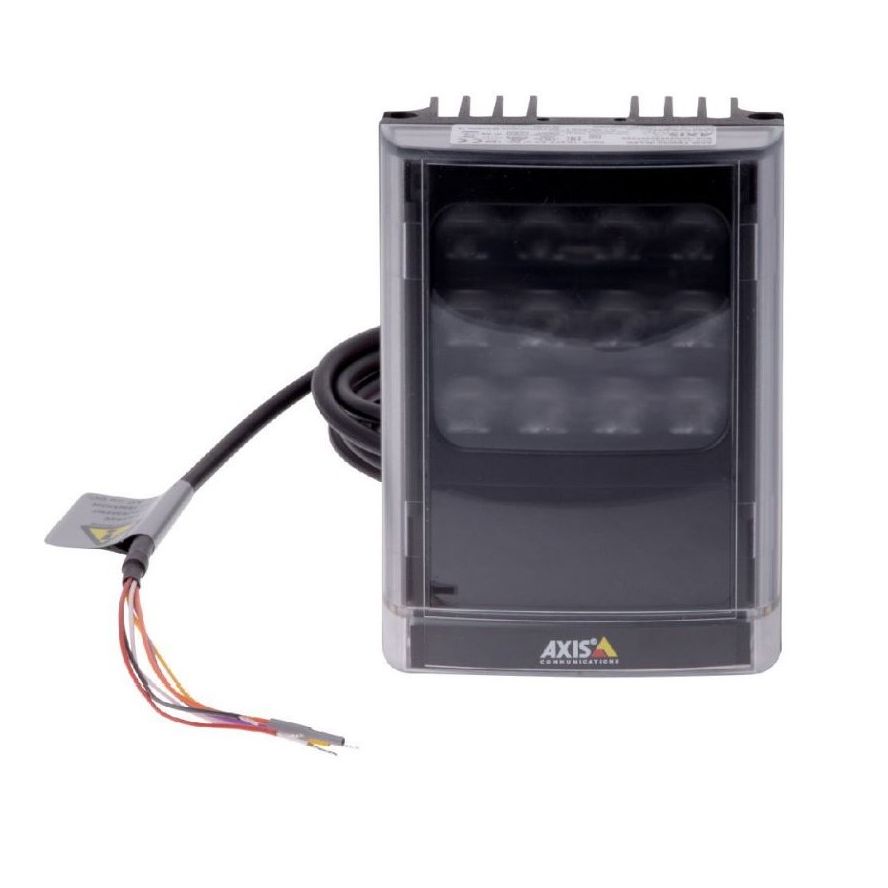

T90D20 IR LED Illuminator (AC/DC Power)
Compatibility Axis Cameras with IR Cut Filter
Wavelength 850 nm Semi-Covert
IR Range With Standard Lens 10 x 10°: 472' / 144 m
With Diverging Lens 35 x 10°: 256' / 78 m
With Diverging Lens 60 x 25°: 177' / 54 m
With Diverging Lens 80 x 30°: 118' / 36 m
With Optional Diverging Lens 120 x 50°: 79' / 24 m
Angle Without Diverging Lenses: 10°
With Diverging Lenses: 35, 60, 80, and 120°
Control Technology Through Integrated Push Buttons or Remote Control
Power Level, Photocell Sensitivity, Telemetry Link for Remote Activation, and Timer
Power Power Input: 12 to 24 VAC/VDC
AC Frequency: 50 to 60 Hz
Maximum Light: 18 W
Standby Mode: 0.3 W
Casing Aluminum and Polycarbonate
Mounting Options Wall, Ceiling, Pole, and Fixed Box Camera Housing
Operating Temperature -28to 122°F / -50 to 50°C
Storage Temperature -28 to 158°F / -50 to 70°C
Operating Humidity 10 to 100% RH
Dimensions 4.0 x 5.0 x 2.5" / 100 x 135 x 66 mm
Cable Length: 8.2' / 2.5 m
Weight 2.11 lb / 950 g
