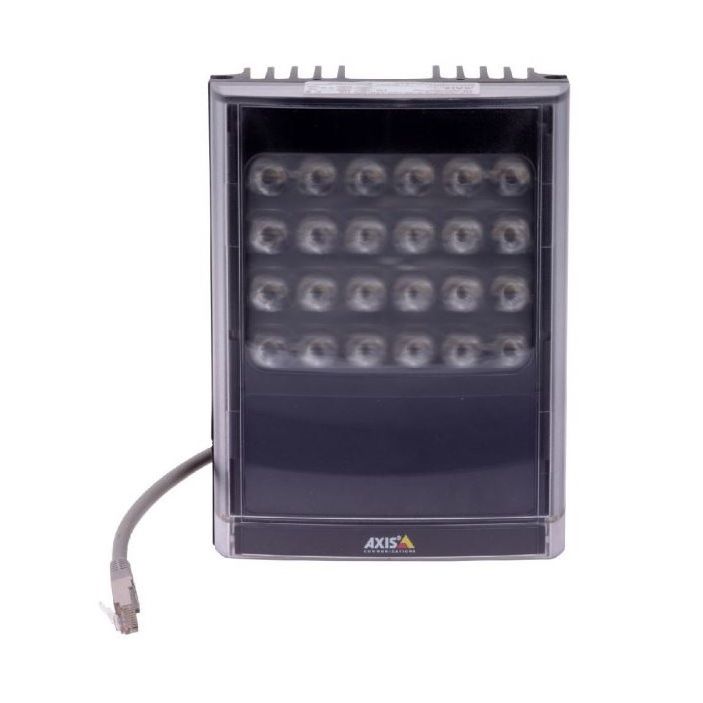

Axis T90D30
from $1,940.40 (incl. GST)
POSMarket SKU: Z15152
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.
Axis' PoE/ IR-LED that offers high-performance infrared LED illuminator with ease of installation
Product Overview
Based on the latest LED technology, the AXIS-01212-001 delivers more light where it is needed. It generates longer infrared LED illumination distance, minimises light wastage, and prevents overexposure of foreground objects. With interchangeable lenses, the angle of illumination can be modified to match your network camera's field of view.
AXIS T90D Illuminators come with a DC or PoE power input, for installation with PoE midspans or PoE switches. All AXIS T90D Illuminators feature a built-in light sensor - sensitive to the amount of light outside - to turn automatically ON/OFF the illuminator. Thanks to integrated green features, such as power adjust and telemetry control (available on the DC models only), Axis illuminators enhance the potential for energy savings.
With our PoE models installation is made even easier, please note, if there is the need to control when the illuminator is activated/disabled, the DC models are recommended, as the PoE models do not feature an IP web interface. To control when activate or disable the PoE illuminator, the latter can be connected to any Axis switch. Then, through a VAPIX command to the switch, the network camera can turn ON/OFF the illuminator.
AXIS T90D30 PoE IR-LED Illuminator offers a quick and reliable installation with a plug-and-play twisted pair cable. Create a flexible and cost-effective system by connecting the PoE illuminator with any PoE midspans or switches from Axis.
AXIS T90D30 IR-LED delivers more light where it is needed. It generates longer infrared LED illumination distance, minimize light wastage, and prevent overexposure of foreground objects. With interchangeable lenses, the angle of illumination can be optimized to match your network camera's field of view. AXIS T90D30 IR-LED Illuminator comes with a pre-mounted 10º diverging lens, and it includes diverging lenses of 35º, 60º and 80º beam angle. Moreover, an optional 120ºdiverging lens is available.
FEATURES
AXIS T90D Illuminators come with a DC or PoE power input, for installation with PoE midspans or PoE switches. All AXIS T90D Illuminators feature a built-in light sensor - sensitive to the amount of light outside - to turn automatically ON/OFF the illuminator. Thanks to integrated green features, such as power adjust and telemetry control (available on the DC models only), Axis illuminators enhance the potential for energy savings.
With our PoE models installation is made even easier, please note, if there is the need to control when the illuminator is activated/disabled, the DC models are recommended, as the PoE models do not feature an IP web interface. To control when activate or disable the PoE illuminator, the latter can be connected to any Axis switch. Then, through a VAPIX command to the switch, the network camera can turn ON/OFF the illuminator.
AXIS T90D30 PoE IR-LED Illuminator offers a quick and reliable installation with a plug-and-play twisted pair cable. Create a flexible and cost-effective system by connecting the PoE illuminator with any PoE midspans or switches from Axis.
AXIS T90D30 IR-LED delivers more light where it is needed. It generates longer infrared LED illumination distance, minimize light wastage, and prevent overexposure of foreground objects. With interchangeable lenses, the angle of illumination can be optimized to match your network camera's field of view. AXIS T90D30 IR-LED Illuminator comes with a pre-mounted 10º diverging lens, and it includes diverging lenses of 35º, 60º and 80º beam angle. Moreover, an optional 120ºdiverging lens is available.
FEATURES
- High and efficient IR LED performance
- Choice of AC/DC or PoE power input
- Flexible angle of infrared illumination
- Easy setup by remote control
- Various mounting options
Product Specifications
| T90D30 IR LED Illuminator (AC/DC Power) | |
| Compatibility | Axis Cameras with IR Cut Filter |
| Wavelength | 850 nm Semi-Covert |
| IR Range | With Standard Lens 10 x 10º: 1148' / 350 m With Diverging Lens 35 x 10º: 541' / 165 m With Diverging Lens 60 x 25º: 311' / 95 m With Diverging Lens 80 x 30º: 230' / 70 m With Optional Diverging Lens 120 x 50º: 148' / 45 m |
| Angle | Without Diverging Lenses: 10º With Diverging Lenses: 35, 60, 80, and 120° |
| Control Technology | Through Integrated Push Buttons or Remote Control Power Level, Photocell Sensitivity, Telemetry Link for Remote Activation, and Timer |
| Power | Power Input: 12 to 24 VAC/VDC AC Frequency: 50 to 60 Hz Maximum Light: 46 W Standby Mode: 0.3 W |
| Casing | Aluminum and Polycarbonate |
| Mounting Options | Wall, Ceiling, Pole, and Fixed Box Camera Housing |
| Operating Temperature | -28 to 122°F / -50 to 50°C |
| Storage Temperature | -28 to 158°F / -50 to 70°C |
| Operating Humidity | 10 to 100% RH |
| Dimensions | 5 x 7 x 3" / 135 x 180 x 68 mm Cable Length: 8.2' / 2.5 m |
| Weight | 3.61 lb / 1.65 kg |
| T90D30 IR LED Illuminator (PoE) | |
| Compatibility | Axis Cameras with IR Cut Filter |
| Wavelength | 850 nm Semi-Covert |
| IR Range | With Standard Lens 10 x 10°: 1148' / 350 m With Diverging Lens 35 x 10°: 541' / 165 m With Diverging Lens 60x 25°: 311' / 95 m With Diverging Lens 80 x 30°:230' / 70 m With Optional Diverging Lens 120 x 50°: 148' / 45 m |
| Angle | Without Diverging Lenses: 10° With Diverging Lenses: 35, 60, 80, and 120° |
| Control Technology | Through Integrated Push Buttons or Remote Control Power Level, Photocell Sensitivity, Telemetry Link for Remote Activation, and Timer |
| Power | High Power over Ethernet, 60 W Max Maximum Light: 49 W Standby Mode: 2.2 W |
| Casing | Aluminum and Polycarbonate |
| Mounting Options | Wall, Ceiling, Pole, and Fixed Box Camera Housing |
| Operating Temperature | -28 to 122°F / -50 to 50°C |
| Storage Temperature | -28 to 158°F / -50 to 70°C |
| Operating Humidity | 10 to 100% RH |
| Dimensions | 5 x 7 x 3" / 135 x 180 x 68 mm Cable Length: 8.2' / 2.5 m |
| Weight | 3.61 lb / 1.65 kg |
