Hikvision IPC-4300H
POSMarket SKU: Z15680

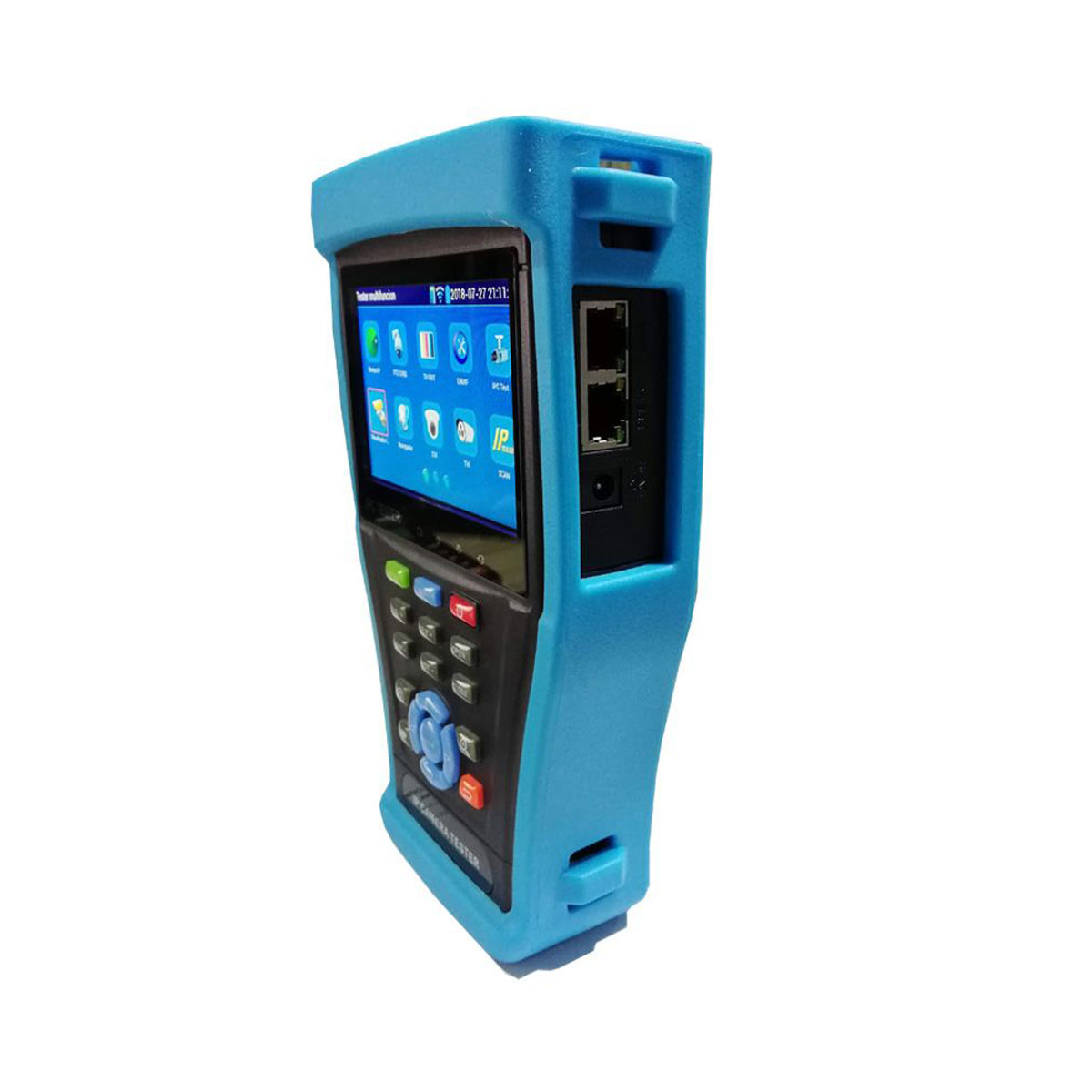

IPC-4300H: IPC-4300H Camera Tester, 4.3 Inch Touchscreen
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.
4.3 inch IPC Camera Tester
Product Overview
It can be used for many aspects of network camera testing, such as detecting IP cameras on a specified network segment, verifying camera output images, controlling PTZ cameras with over 30 protocols, and measuring PoE or PSE voltage. The IPC-4300H provides a greater range of functionality from previous camera testing equipment manufactured by Hikvision.
Features
- 4.3" IPS Test Monitor with Touch Screen
- ONVIF
- Supports Up to 4K Video Signal Resolution
- HD-TVI Camera Tester
- IP Discovery, Automatic Searching of an Entire Network Segment for IP Cameras
- Auto-Login and Display of Camera Image
- Quick Hikvision Camera Activation
- Hikvision Test Tool/Hikvision Camera Brands Test/IP Camera Viewer
- 12 VDC/2A Power Output,
- 48 VDC PoE Power Output
Call 1300 737 998
Product Specifications
| IPC-4300H | |
| Parameters | |
| Display | 4.3 inch IPS LCD test monitor with touch screen , resolution 800（RGB）x 480 |
| Network Port | 10/100M auto adapt,RJ45 |
| WIFI | Built in WIFI,speeds150M,display wireless camera image |
| IP Camera Type | ONVIF, Hikvision. Customized welcome |
| Zoom Image | Support Analog camera and IP camera image zoom /move |
| Snapshot,Video Record And Playback | Image Screen snapshot, record ,save ,view and record and play back |
| 12V/2Apower Output | Output DC12V/2A power for camera |
| PoE Power Output | 48V PoE power output,Max power 24W |
| Audio Test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone |
| PTZ Control | Support RS232/RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc |
| Color Bar Generator | Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color ) |
| UTP Cable Tester | Test UTP cable connection status and display on the screen. Read the number on the screen |
| Data Monitor | Captures and analyzes the command data from controlling device,also can send hexadecimal |
| Network Test | IP address scan, link test, Ping test, Quickly search the connection IP camera and other device’s IP address |
| Operation Setting | Capacitive touch screen, OSD menu,Chinese/English |
| Auto Off | 5-30 (mins) |
| IP Discovery | auto-scan the whole network segment camera IP |
| Rapid ONVIF | search camera quickly, auto log in and display image from the camera, activate Hikvision camera |
| Hik Test Tool | activate Hikvision camera，Camera image test, support modify IP, user name and password etc parameters . |
| HD TVI Camera Test | Support resolution 720p 25fps,30fps,50fps,60fps / 1080P 25fps,30fps , camera OSD menu control over coaxial cable |
| CVBS Video Signal Test | 1 channel Video IN BNC input,1 channel Video OUT BNC output,support PAL/NTSC |
| Power | |
| External Power Supply | DC 12V（2A） |
| Battery | Built-in 7.4V Lithium polymer battery, 5000mAh |
| Rechargeable | After charging 7~8 hours, normal working time 16 hours |
| General | |
| Working Temperature | -10°C---+50°C |
| Working Humidity | 30%-90% |
| Dimension/Weight | 212mm×135.5mm×56.5mm / 0.75Kg |
