Axis T8705

POSMarket SKU: Z15043

01186-001: T8705 16ch Video Decoder, HDTV 1080p Output, H.264

This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.

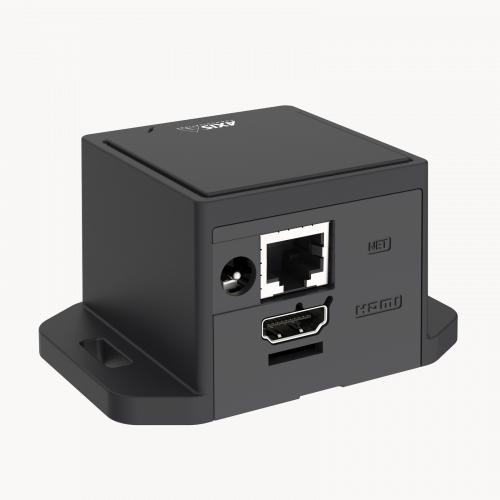

Axis' discrete 1080p video decoder with HDMI output

Product Overview

The AXIS T8705 Video Decoder is a small, easy to install video decoder enabling digital monitors to connect to and display live video from Axis network cameras. Optimised for decoding of H.264 and Motion JPEG, the AXIS T8705 can show an unlimited number of sources in sequence and up to 16 video sources in multiview. The AXIS T8705 offers a cost-effective solution for video monitoring where live video can be displayed without the use of connection via a PC.

This decoder is compatible with the AXIS Camera Station video management system. It is equipped with an RJ45 Ethernet connector. A VESA monitor mounting bracket is included.

FEATURES
  • HDTV 1080p HMDI video decoder
  • Sequence and multiview
  • VESA mount included
  • Integrated in Axis solutions
  • Axis camera discovery
  • Requires AXIS-5008-001 AXIS PoE power supply

Product Specifications

Video
Resolution 1920 x 1080 to 160 x 90
Refresh Rate Up to 60 Hz
View Sequence view or multiview up to 4 x 4 streams
Frame Rate Up to 30/25 fps at 60/50 Hz in all resolutions
Video Compression H.264 (MPEG-4 Part 10/AVC) baseline, main, and high profiles
MJPEG
Network
Security Password protection, HTTPS encryption, network access control, digest authentication
Supported Protocols IPv4, HTTP, HTTPS, SSL/TLS, Bonjour, UPnP, DNS, NTP, RTSP, TCP, UDP, ICMP, DHCP, SSH
System Integration
Application Programming Interface Open API for software integration
General
Casing Plastic casing
Color: Black NCS S 9000-B
Power 5 VDC, max 5 W
Power scheduling
Connectors 1 RJ45 10Base-T/100Base-TX/1000Base-T
1 DC input, DC barrel power jack 5.5/2.1 mm
1 HDMI type A
Operating Conditions 32 to 122°F / 0 to 50°C
Humidity 10-85% RH non-condensing
Storage Conditions -40 to 149°F / -40 to 65°C
Video Management Software AXIS Camera Station, video management software from Axis' Application Development Partners
Dimensions Decoder: 3.27 x 2.24 x 1.85" / 83 x 57 x 47 mm
Decoder with Monitor Mount Bracket: 3.27 x 3.86 x 1.89" / 83 x 98 x 48 mm
Weight Decoder: 0.22 lb / 100 g
Power Supply: 0.22 lb / 100 g
