Hanwha SPD-151

POSMarket SKU: Z15594

SPD-151: Wisenet Decoder, 48ch, 30fps at 8MP, HDMI, VGA, BNC, PoE, 12VDC

This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.

49-Channel Network Video Decoder

Product Overview

You can now implement video decoding into your home or business surveillance system with the SPD-151 49-Channel Network Video Decoder from Hanwha Techwin. This unit provides video decoding at up to 12MP resolution for up to 48 cameras via HDMI/VGA, along with video decoding for a single camera via BNC, for a maximum video decoding total of 49 cameras. The HDMI port delivers video output up to 4K UHD. Interfaces on the unit include a Gigabit Ethernet port, an audio output, and two USB 2.0 ports.

FEATURES
  • Video decoding up to 48 cameras on HDMI / VGA
  • 1 camera decoding on BNC
  • Clone & Expand mode support (HDMI, VGA)
  • Maximum 4K resolution@HDMI, 1080p@VGA
  • Tile merge function
  • Decode @12MP, 8MP, 5MP, 3MP, 1080p, 720p, 4CIF
  • H.265, H.264, MJPEG codec support
  • Various view mode, Hallway View
  • (HDMI) 1 / 4 / 6 / 8 / 9 / 13 / 16 / 25 / 36 (32) / 2V / 3V
  • (VGA) 1 / 4 / 6 / 8 / 9 / 13 / 16 / 2V / 3V
  • Up to 20 layouts and sequence
  • Management using web interface

Product Specifications

SPD-151
IP Encoding/Decoding
IP Video H.264/H.265/MJPEG:
4000 x 3000 (200 Mb/s) Decoding
IP Audio AAC-LC/G.711/G.726: Decoding

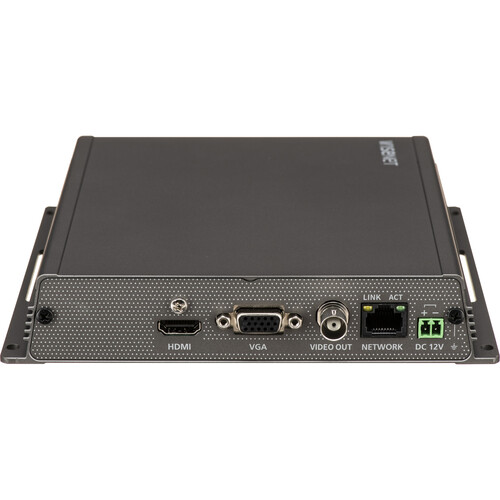

Interfaces
Video Connectors 1 x HDMI
1 x DE-15/DB-15 (VGA)
1 x BNC
Audio Connectors 1 x 1/8" / 3.5 mm TS

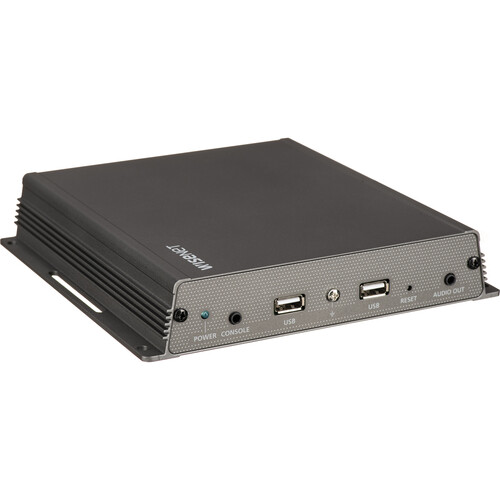

Other I/O 2 x USB Type-A USB 2.0
PoE Support PoE 802.3af
Power
Power Connector 1 x RJ45 Input
1 x Barrel Input
Power Consumption Device: (8.4 W)
Power Supply: 12 VDC (8.4 W)
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 20 to 85%
General
Materials Metal
Dimensions 7.4 x 7 x 1.3" / 187.8 x 178 x 34 mm
Weight 1.5 lb / 0.7 kg
