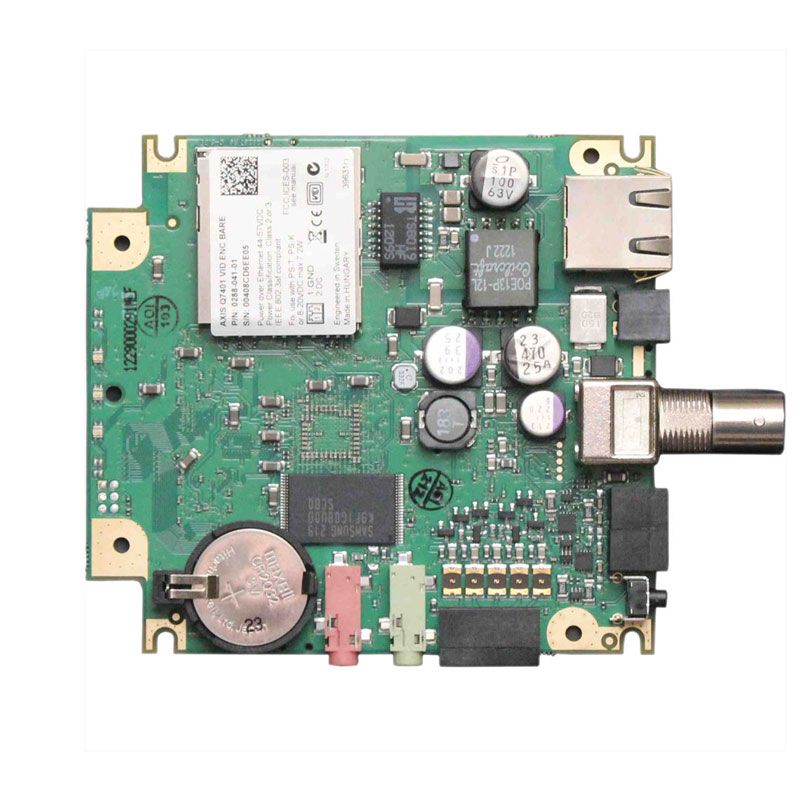

Axis Q7401

The Axis Q7401 / AXIS-0288-0xx Video Encoder is a high performance, single channel solution that integrates an analogue camera into an IP-based video surveillance system. With outstanding video processing capabilities, the AXIS Q7401 delivers superb video quality and significant savings in bandwidth and storage.

Video is captured in the H.264 format, a codec that offers high compression rates while maintaining excellent image quality, thus reducing storage and network requirements. MJPEG is also supported for increased flexibility. Up to 3 video streams, each configurable for frame rates and resolution, can be sent simultaneously over the network. Images can also be adjusted for contrast, brightness, saturation, and other parameters before the conversion takes place.

If the analog camera is of the PTZ type, it can be accessed over the network for pan, tilt, and zoom control as well as to operate its presets and tour guard functions via a Windows compatible joystick. To enhance security and for better data management, this encoder incorporates video motion detection, active tampering alarm, and audio detection functions, all of which can be viewed and configured over the network. Each of these detection functions can be used to trigger an action following an alarm alert such as email notification, file uploads, or local storage to the encoder's SD card slot. There are also a number of alarm I/O ports to facilitate connection to external input and output devices.

FEATURES

• Superb video quality
• Multiple H.264 streams
• Image setting adjustment
• Intelligent video capabilities
• Power over Ethernet
• Audio support
• Local storage
