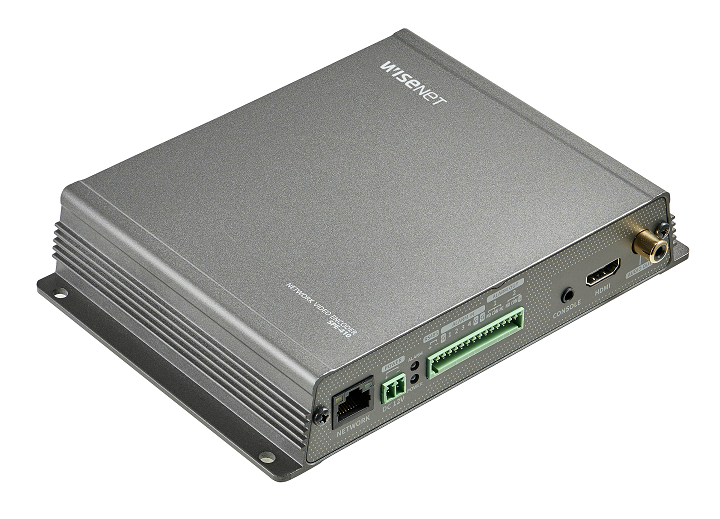

Hanwha SPE-410
POSMarket SKU: Z15588
SPE-410: Wisenet Encoder 4ch, 15fps at 4MP, HDMI, QVGA, BNC, PoE, 12VDC
4-Channel 4MP Network Video Encoder
Product Overview
FEATURES
- Supports AHD, CVI, TVI, & CVBS video formats
- Motion detection, Video loss, Tampering
- H.264, MJPEG codec support
- ECO. Stream. bandwidth reduction technology per channel/profile (firmware v1.30+)
- Multiple streaming (Up to 3 profiles per channel)
- Supports ACP/Pelco-C up-the-coax & RS-485/422 PTZ control interface
- HDMI Output
- Alarm & Audio I/O
Call 1300 737 998
Product Specifications
| SPE-410 | |
| General | |
| Device Type | Video server |
| Video Channels | 4 |
| Audio Channels | 4 |
| TV System | NTSC |
| Image Resolution | 1280x720, 1920x1080, 704x480, 352x240, 704x240, 928x480, 928x240 |
| Compression Format | MJPEG, MPEG-4, G.711, H.264, AVC |
| Compliant Standards | IEEE 802.3af |
| Color | Dark gray |
| Video Server | |
| Frame Rate | 30 fps |
| Features | Motion detection, privacy mask, supports CVBS/AHD/CVI/TVI encoding |
| Networking | |
| DDNS Support | Yes |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Supported Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, SSL, QOS, EAP, PIM-SM |
| Features | IP address filtering, ONVIF support, 802.1x authentication, Constant Bit Rate (CBR), Variable Bit Rate (VBR), multicast mode |
| Connections | |
| Video Input Ports | BNC x 4 |
| Video Input Signal Level | 1.0Vp-p 75 Ohm |
| Video Output Ports | HDMI x 1 |
| Audio Input Ports | RCA x 4 |
| Audio Output Ports | RCA x 1 |
| Alarm Ports | Alarm input x 4, alarm output x 2 |
| Camera Control Interface (PTZ) | RS-485 |
| Network Port | 10/100/1000Base-T |
| Power | |
| Voltage | 12 V / PoE |
| Power Consumption | 9.6 Watt |
| Dimensions & Weight | |
| Width | 7 in |
| Depth | 5 in |
| Height | 1.3 in |
| Weight | 4.96 lbs |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 20 - 80% |
