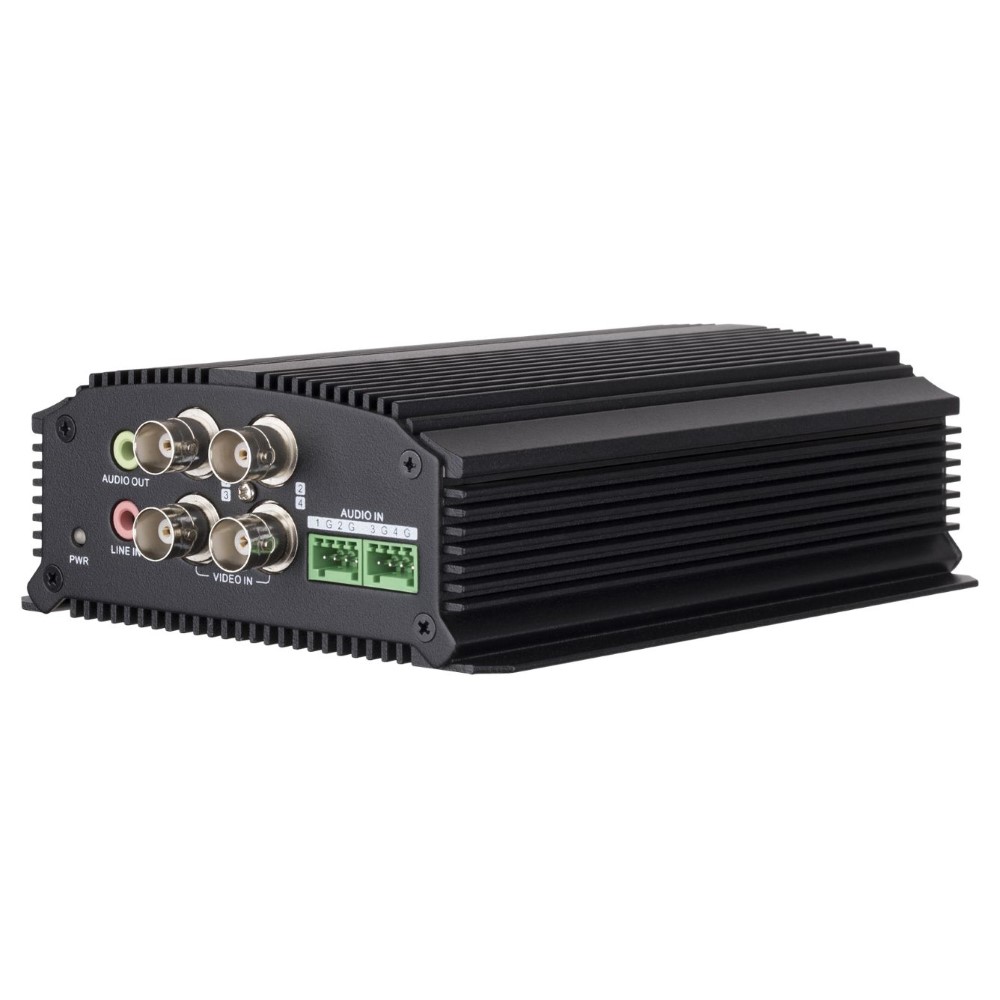

Hikvision DS-6701HUHI
POSMarket SKU: Z15238
This model is available in 2 different configurations. Select a configuration below or contact our experts on 1300 737 998.
Turbo HD Encoder series, comes with 1-ch and 4-ch
Product Overview
FEATURES
- Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
- Up to 5 MP HDTVI video input and live view
- H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264/MJPEG for the sub-stream of analogue cameras
- Full channel recording at up to 5MP resolution
- 1 micro SD card slot (8G up to 128 GB capacity)
- Searching and playing back record files by camera number, recording type, start time, end time
Product Specifications
| DS-6701HUHI | |
| Recording | |
| Video Compression | MJPEG (sub-stream)/H.265+/H.265/H.264+/H.264 |
| Frame Rate | Main stream: 5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N) |
| Encoding Resolution | 5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Video Bitrate | 32 Kbps to 10 Mbps |
| Dual-Stream | Support |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Video And Audio | |
| Analog Video Input | 1-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI Input | 5MP, 4MP, 3MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 |
| AHD Input | 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS Input | PAL/NTSC |
| Audio Input | 1-ch, 3.5mm interface (2.0 Vp-p, 1 KΩ) (LINE IN) |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st audio input) |
| Synchronous Playback | 1-ch |
| Network | |
| Network Protocol | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS, ONVIF profile S |
| Network Interface | 1, RJ45 10M/100Mself-adaptive Ethernet interface |
| Auxiliary Interface | |
| SD Card | 1 Micro SD card slot, support Micro SD card |
| Capacity | 8G Up to 128 GB |
| Serial Interface | RS-485 (half-duplex); RS-232 |
| Alarm In/Out | 1/1 |
| General | |
| Power Supply | 12 VDC, 1.25 A |
| Consumption | ≤ 15W |
| Working Temperature | -10 °C to +55 °C (+144 °F to +131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 162.5 × 114 × 47.5 mm(6.4 × 4.5 × 1.9 inch) ≤ 1.5 kg (3.3 lb) |
| DS-6704HUHI | |
| Recording | |
| Video Compression | MJPEG (sub-stream)/H.265+/H.265/H.264+/H.264 |
| Encoding Resolution | 5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame Rate | Main stream: 5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N) |
| Video Bitrate | 32 Kbps to 10 Mbps |
| Dual-Stream | Support |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Video And Audio | |
| Analog Video Input | 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI Input | 5MP, 4MP, 3MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 |
| AHD Input | 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS Input | PAL/NTSC |
| Audio Input | 4-ch |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Synchronous Playback | 4-ch |
| Network | |
| Network Protocol | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnPâ„¢, HTTPS, ONVIF profile S |
| Network Interface | 1, RJ45 10M/100Mself-adaptive Ethernet interface |
| Auxiliary Interface | |
| SD Card | 1 Micro SD card slot, support Micro SD card |
| Capacity | 8G Up to 128 GB |
| Serial Interface | RS-485 (half-duplex); RS-232 |
| Alarm In/Out | 4/2 |
| General | |
| Power Supply | 12 VDC, 1.25 A |
| Consumption | ≤ 15W |
| Working Temperature | -10 °C to +55 °C (+144 °F to +131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 162.5 × 114 × 47.5 mm(6.4 × 4.5 × 1.9 inch) ≤ 1.5 kg (3.3 lb) |
