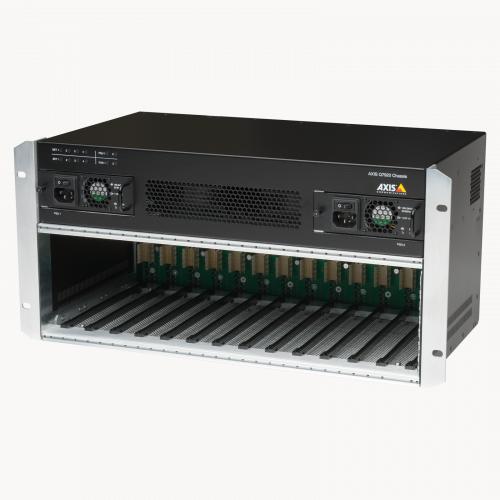

Axis Q7920
POSMarket SKU: Z15047
0575-006: Q7920 5RU Video Encoder Chassis,up to 14 Hot-Swappable Encoder Blades & 84 Cameras
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.
Axis' reliable, high-density video encoder chassis.
Product Overview
This Chassis allows a number of different video encoder blades to be mounted and thereby offering a flexible, expandable, high-density solution. It allows any combination of blades, whether they are 4- or 6-channel blades supporting different compression formats, resolutions and frame rates. It allows any combination of blades - whether they are 4- or 6-channel blades. Blades can be added or changed without having to power down the chassis. This rack mount video encoder chassis is a video surveillance solution suitable for large, mission critical installations where high performance, flexibility, and reliability are required.
The Axis Q7920 is a reliable solution with its power and network redundancy. It offers both RJ45 ports and SFP slots to ensure flexible and cost-effective long distance network connectivity. The video encoder chassis supports PTZ control through RS485 connectors at the back of each slot. Each slot also has connections for external input and/or output devices, which allow for external alarm triggers and control of devices such as door locks or lights.
FEATURES
- Holds up to 14 hot-swappable blades
- Power and network redundancy
- I/O and serial port support
Product Specifications
| Q7920 | |
| Expansion Slots | 14 slots for video encoder blades |
| Compatibility | AXIS Video Encoder Blades Q7406 No. of Channels: 6 Video Compression: H.264, Motion JPEG Frames/sec (NTSC/PAL) in Maximum Resolution: Multiple streams at 30/25 in D1 per channel External Inputs/Outputs: 12 configurable PTZ Support: Yes Q7414 No. of Channels: 4 Video Compression: H.264, Motion JPEG Frames/sec (NTSC/PAL) in Maximum Resolution: Multiple streams at 30/25 in D1 per channel External Inputs/Outputs: 8 configurable PTZ Support: Yes P7224 No. of Channels: 4 Video Compression: MPEG-4, Motion JPEG Frames/sec (NTSC/PAL) in Maximum Resolution: Multiple streams at 30/25 in D1 per channel (8 streams in total) External Inputs/Outputs: 4 configurable PTZ Support: Yes |
| Casing | 5U, metal casing for mounting in 19" rack |
| Connectors | 4 x Ethernet 10BASE-T/100BASE-TX/1000BASE-T RJ45 (Gigabit Ethernet) 4 x 1 Gb/s SFP slot 14 x I/O terminal blocks 14 x RS485 terminal blocks (half-duplex) 14 x 2-pin 12 V power out terminal blocks |
| Power | 100 to 240 VAC, maximum 365 W, 50/60 Hz 2 exchangeable, redundant power supply units |
| Cooling | Two exchangeable fan trays equipped with two fans each |
| Operating Conditions | Temperature: 32 to 113°F (0 to 45°C) Humidity: 20 to 85% RH (non-condensing) |
| Dimensions | 19.0 x 9.8 x 8.7" (48.2 x 25.0 x 22.2 cm) |
| Weight | 23.2 lb (10.5 kg) excluding blades |
